HF-FAX:

Não é propriamente um "modo digital", mas está aqui classificado pois necessita de um hardware além do receptor, para a visualização. Trata-se da transmissão de imagens, gerealmente cartas meteorológicas (podento haver a retransmissão de imagens de satélites meteorológicos), em branco e preto ou em escala de cinza.

A tabela de frequências que segue abaixo é uma complilação de uma disponível no National Weather Service (USA), onde a ordenação é por país. A tabela existente no NWS é produto das informações oficiais de agências governamentais e das resultantes de observações de amadores, radioescutas, navegantes e etc.

Para o uso no hobby, a ordenação por frequência (ou por horário de emissão) me pareceu mais interessante. De qualquer modo é recomendável a posse do documento original, em .pdf, pois nele constam informações detalhadas para cada estação, como por exemplo o tipo de carta meteorológica que será transmitido, maior detalhamento de horários, quando a tabela aqui apresentada mostra apenas All Broadcast Times.

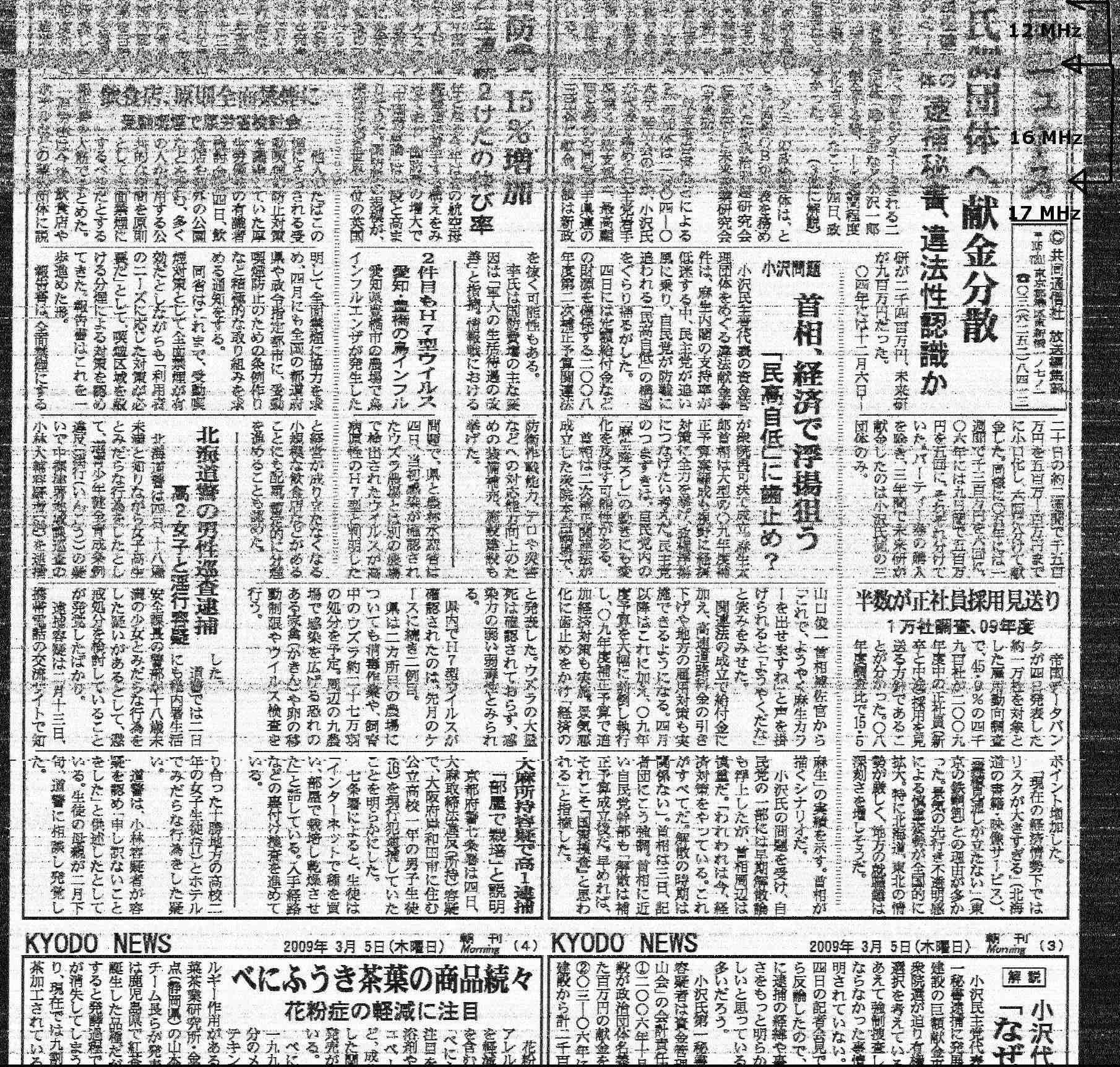

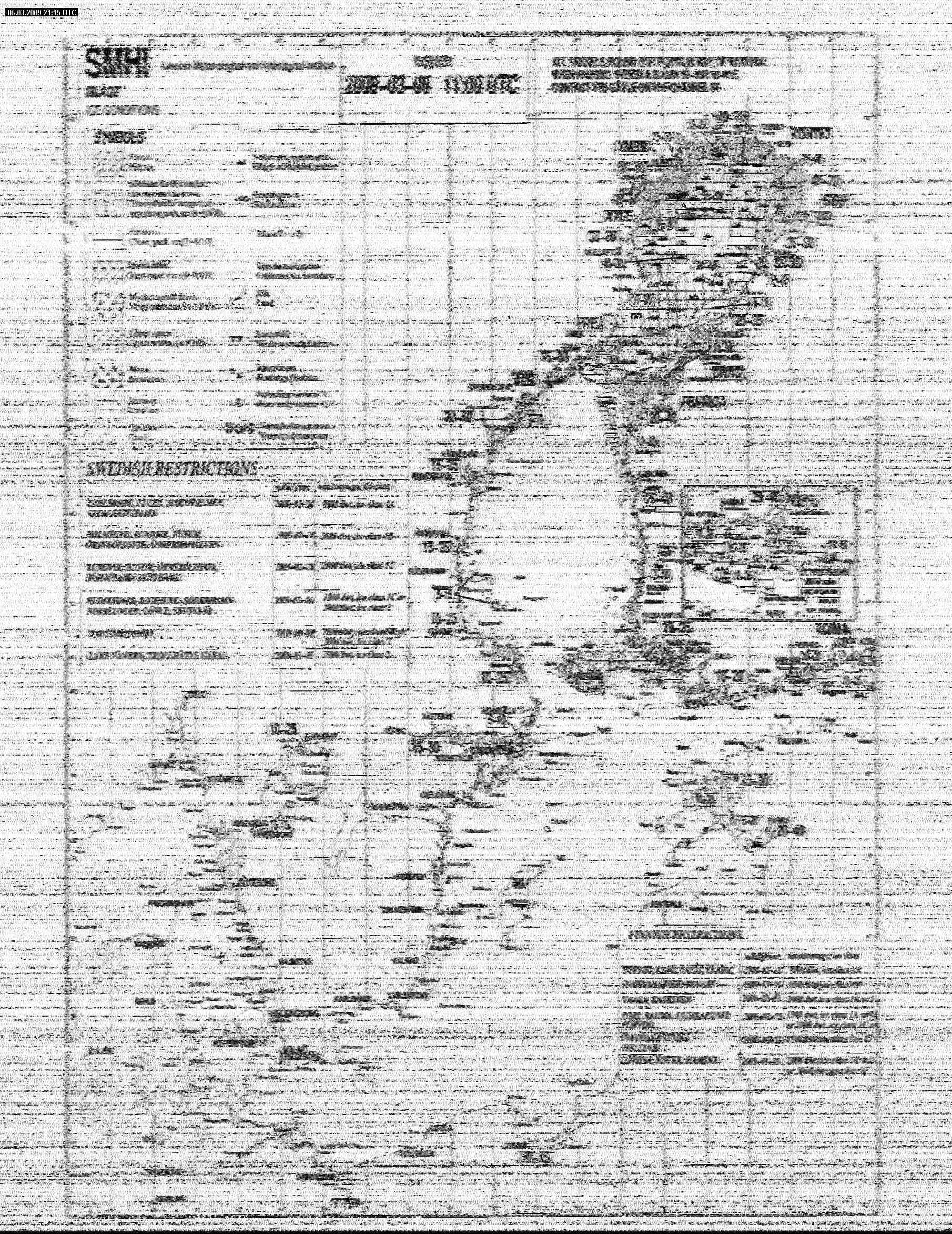

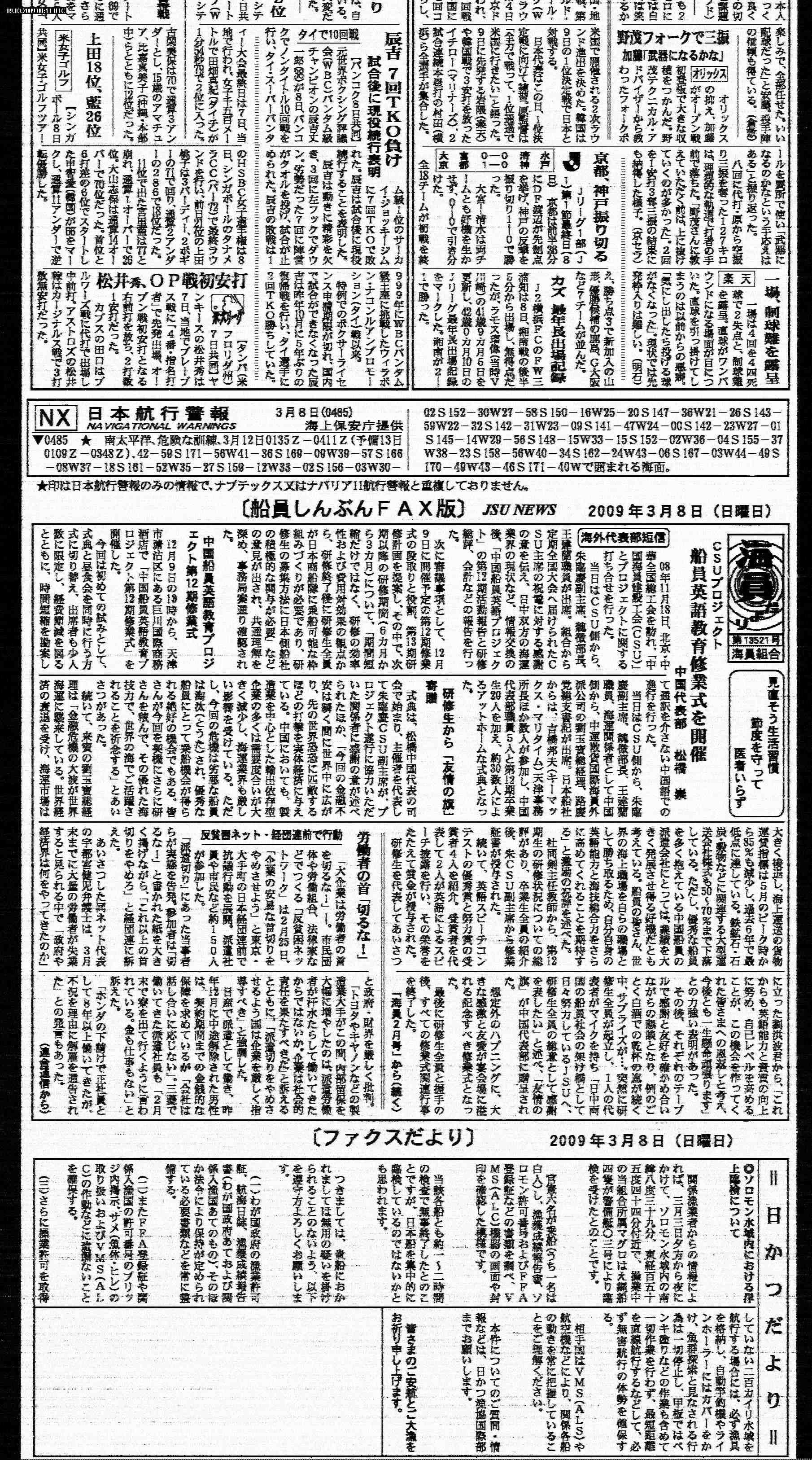

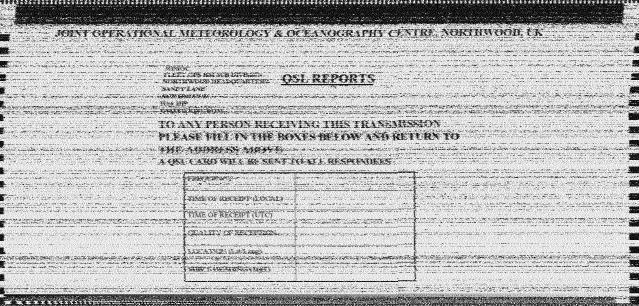

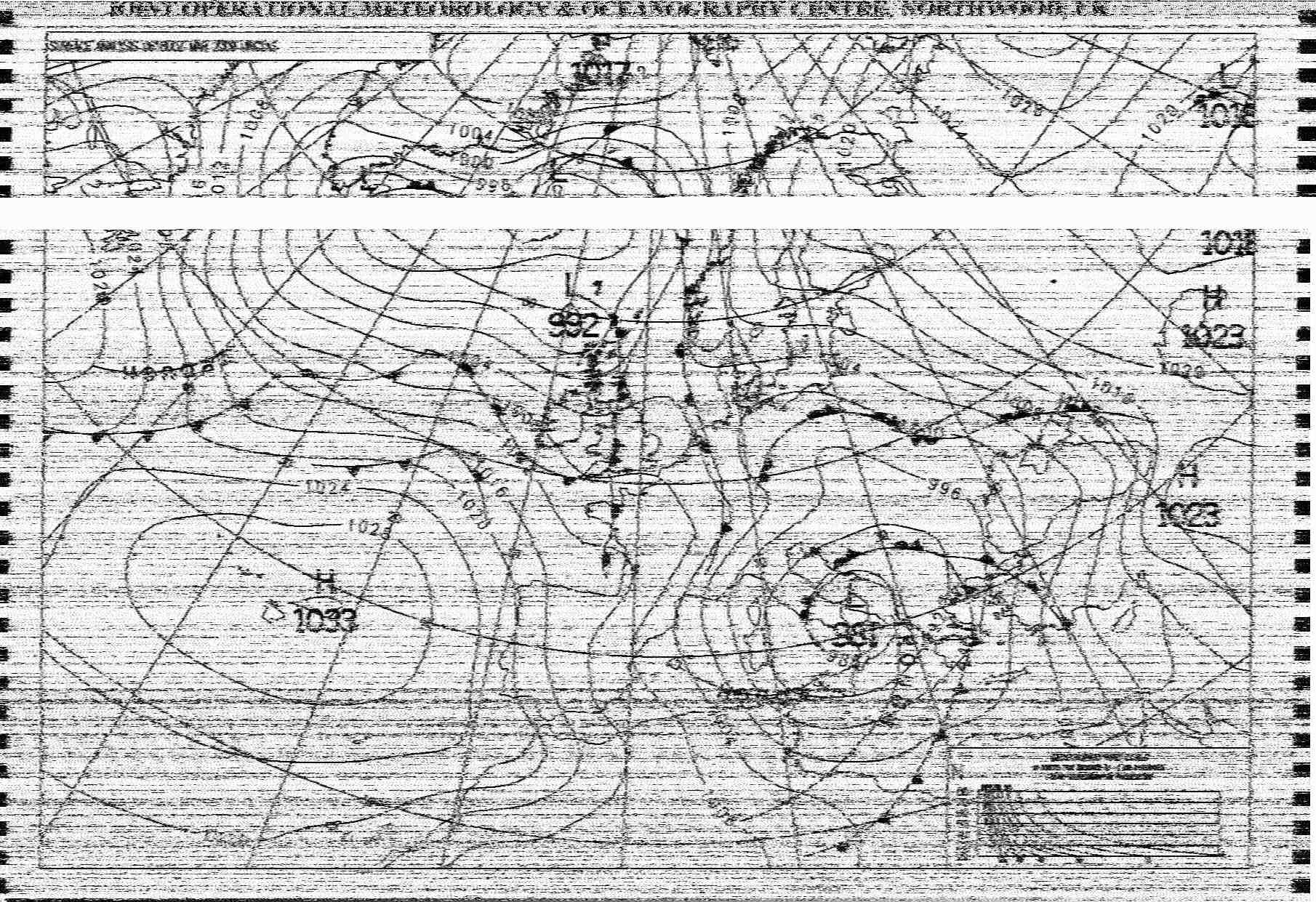

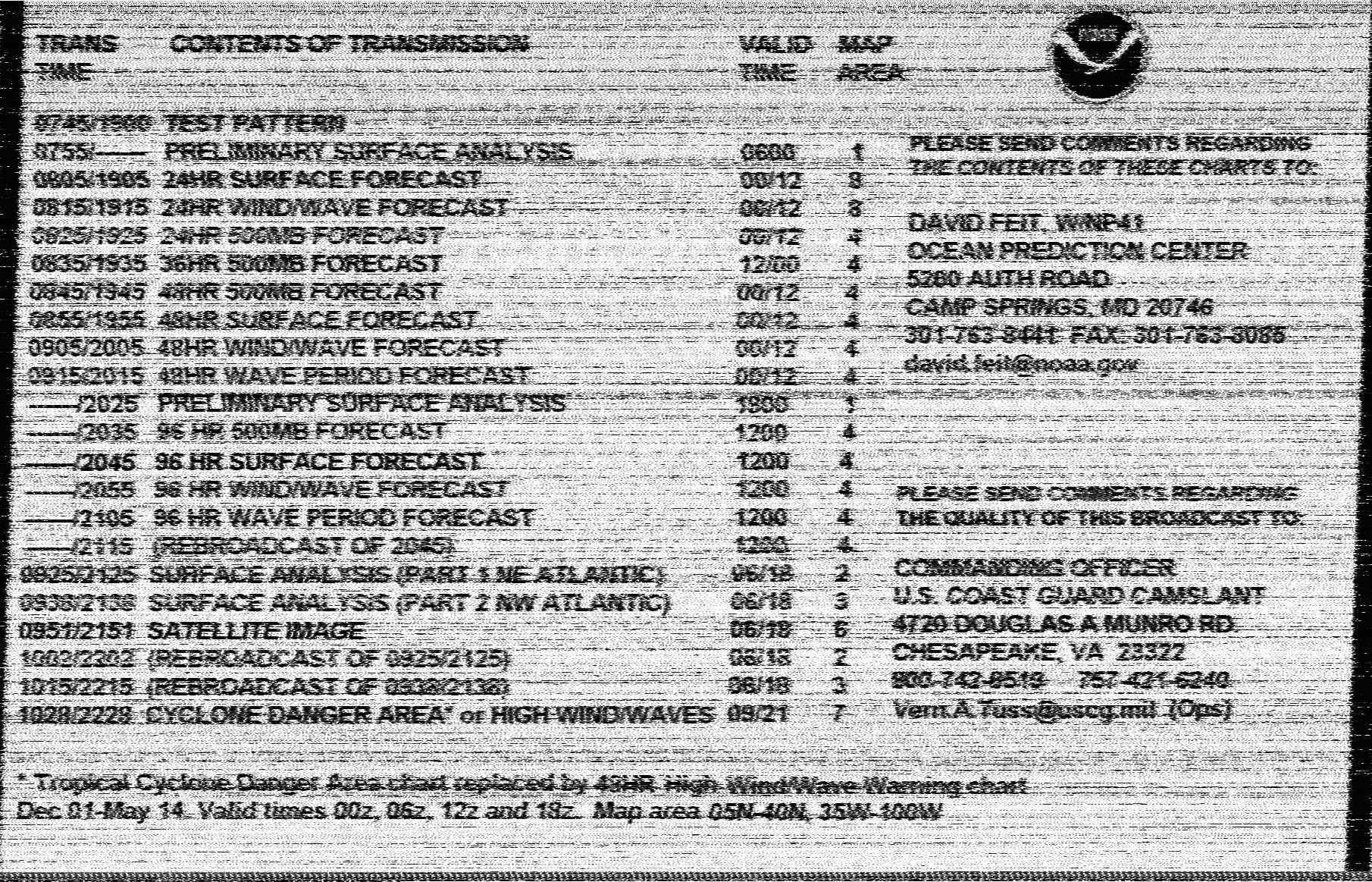

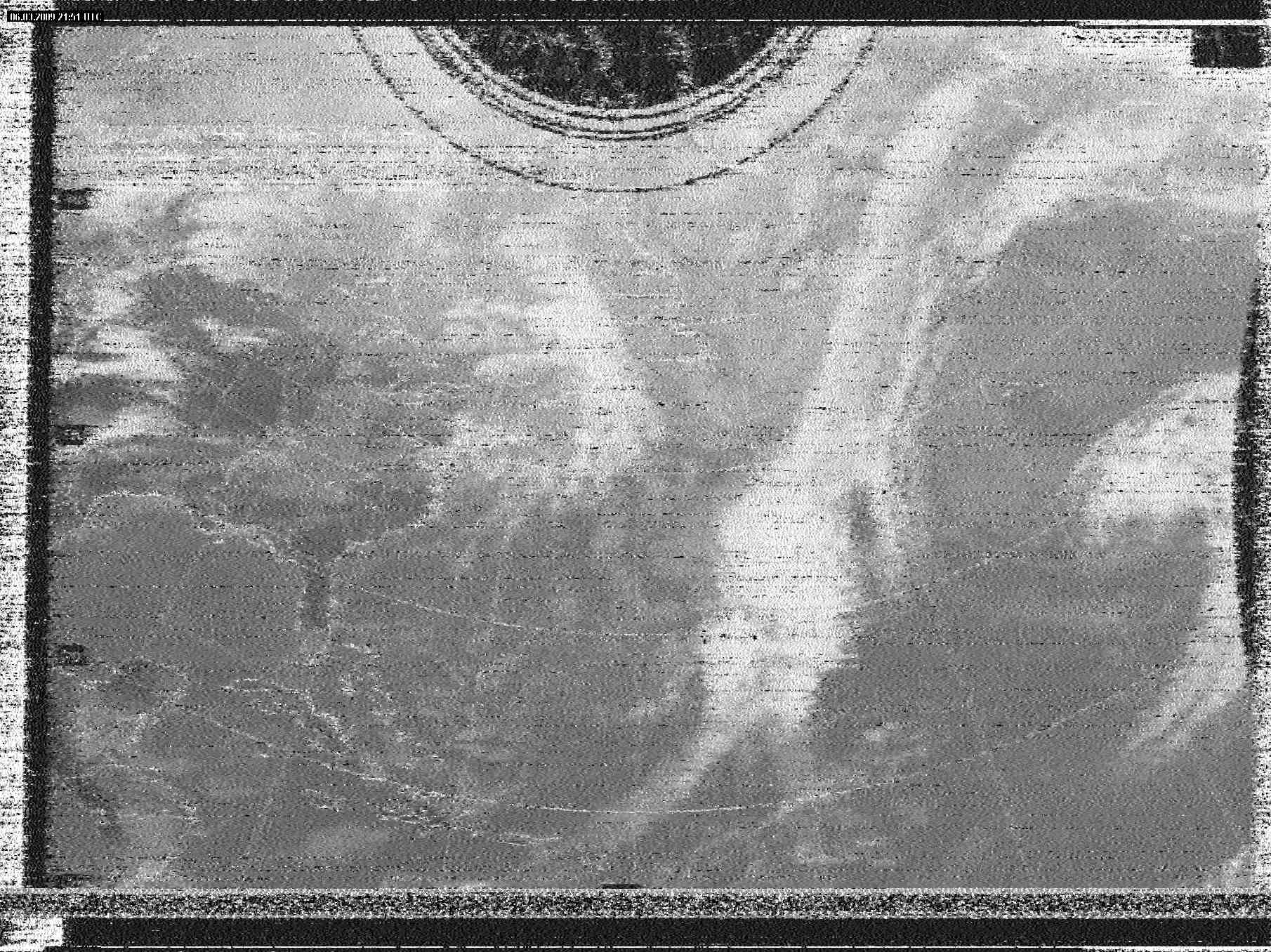

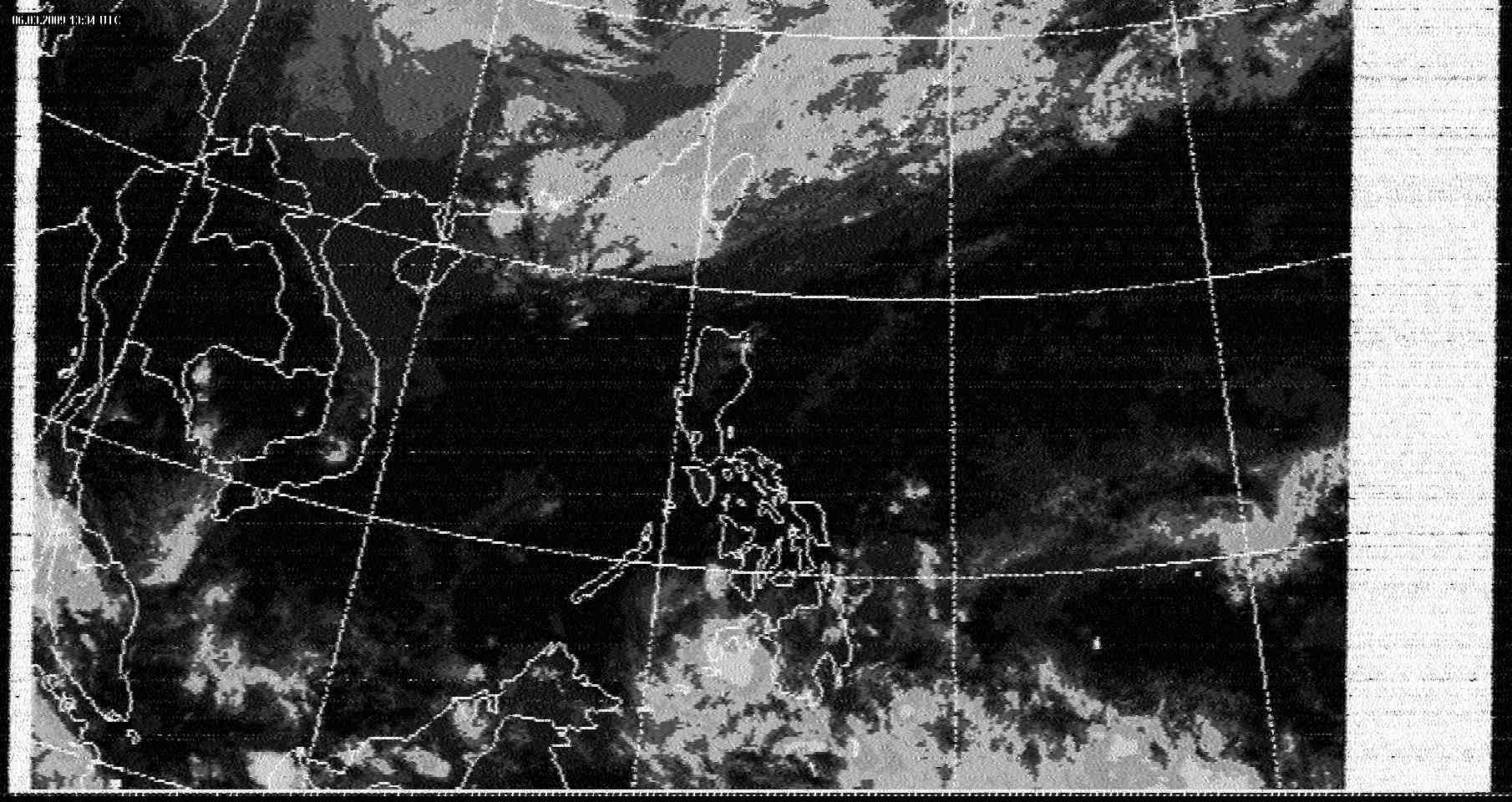

Links na tabela significam atalhos para arquivos .jpg de imagens recebidas.

Equipamento utilizado:

  • Receptor: Kachina 505DSP, USB, filtro 1KHz, IF shift +1140Hz, AGC speed 6ms.
  • Antena: L invertido abaixo de 10MHz, mag loop 10 ... 30MHz.
  • Software: JVCOMM32 @ Pentium 2.4GHz

CARRIER FREQ (Khz)

RX USB FREQ

CALL

LOCATION

TIME (UTC)

EMISS

PWR (kW)

122,5

120,6

CFH

HALIFAX, NOVA SCOTIA, CANADA

All Broadcast Times

F3C

10

148,0

146,1

-

PEVEK, CHUKOTKA PENINSULA

All Broadcast Times

F3C

-

2054,0

2052,1

NOJ

KODIAK, ALASKA, USA

All Broadcast Times

F3C

4

2618,5

2616,6

GYA

NORTHWOOD, UNITED KINGDOM

2000 0600

F3C

10

2628,0

2626,1

VMC

CHARLEVILLE, AUSTRALIA

0900 1900

F3C

1

3247,4

3245,5

ZKLF

WELLINGTON, NEW ZEALAND

0945 1700

F3C

5

3253,0

3251,1

VFF

IQALUIT, N.W.T., CANADA

2100 2330

J3C

5

3253,0

3251,1

VFR

RESOLUTE, N.W.T., CANADA

0010 0900

J3C

5

3585,0

3583,1

HLL1

SEOUL, REPUBLIC OF KOREA

All Broadcast Times

F3C

3

3622,5

3620,6

JMH

TOKYO, JAPAN

All Broadcast Times

F3C

5

3830,0

3828,1

RCC76

MOSCOW, RUSSIA

-

F3C

-

3855,0

3853,1

DDH3

HAMBURG/PINNEBERG, GERMANY

All Broadcast Times

F3C

10

4014,0

4012,1

ZSJ

CAPE NAVAL, SOUTH AFRICA

1600-0600 (when available)

F3C

10

4228,0

4226,1

CBV

VALPARAISO PLAYA ANCHA, CHILE

All Broadcast Times

F3C

1

4235,0

4233,1

NMF

BOSTON, MASSACHUSETTS, USA

0230 1028

F3C

4

4271,0

4269,1

CFH

HALIFAX, NOVA SCOTIA, CANADA

All Broadcast Times

F3C

6

4298,0

4296,1

NOJ

KODIAK, ALASKA, USA

All Broadcast Times

F3C

4

4316,0

4314,1

JJC

KYODO NEWS, JAPAN/SINGAPORE

All Broadcast Times

F3C

5

4317,9

4316,0

NMG

NEW ORLEANS, LOUISIANA, USA

All Broadcast Times

F3C

4

4346,0

4344,1

NMC

PT. REYES, CALIFORNIA, USA

0140 1608

F3C

4

4416,0

4414,1

VCO

SYDNEY - NOVA SCOTIA, CANADA

1121 1741

J3C

-

4481,0

4479,1

SVJ4

ATHENS, GREECE

-

F3C

8

4610,0

4608,1

GYA

NORTHWOOD, UNITED KINGDOM

All Broadcast Times

F3C

10

4616,0

4614,1

BMF

TAIPEI, REPUBLIC OF CHINA

-

F3C

10

4777,5

4775,6

IMB51

ROME, ITALY

All Broadcast Times

F3C

5

5008,0

5006,1

RCC76

MOSCOW, RUSSIA

-

F3C

-

5100,0

5098,1

VMC

CHARLEVILLE, AUSTRALIA

All Broadcast Times

F3C

1

5250,0

5248,1

BMF

TAIPEI, REPUBLIC OF CHINA

-

F3C

10

5336,0

5334,1

RBW 41

MURMANSK, RUSSIA

-

F3C

-

5526,9

5525,0

BAF6

BEIJING (PEKING), CHINA

-

F3C

6

5755,0

5753,1

VMW

WILUNA, AUSTRALIA

1100 2100

F3C

1

5807,0

5805,1

ZKLF

WELLINGTON, NEW ZEALAND

All Broadcast Times

F3C

5

5857,5

5855,6

HLL2

SEOUL, REPUBLIC OF KOREA

All Broadcast Times

F3C

3

6340,5

6338,6

NMF

BOSTON, MASSACHUSETTS, USA

All Broadcast Times

F3C

4

6445,5

6443,6

RBW 41

MURMANSK, RUSSIA

All Broadcast Times

F3C

-

6496,4

6494,5

CFH

HALIFAX, NOVA SCOTIA, CANADA

All Broadcast Times

F3C

6

6834,0

6832,1

GYA

NORTHWOOD, U. K. (PERSIAN GULF)

1800-0800

F3C

10

6915,1

6913,2

VCO

SYDNEY - NOVA SCOTIA, CANADA

2200 2331

J3C

-

6987,0

6985,1

RCC76

MOSCOW, RUSSIA

-

F3C

-

7395,0

7393,1

HSW64

BANGKOK, THAILAND

-

F3C

3

7433,5

7431,6

HLL3

SEOUL, REPUBLIC OF KOREA

All Broadcast Times

F3C

3

7508,0

7506,1

ZSJ

CAPE NAVAL, SOUTH AFRICA

All Broadcast Times

F3C

10

7535,0

7533,1

VMW

WILUNA, AUSTRALIA

All Broadcast Times

F3C

1

7695,0

7693,1

RCC76

MOSCOW, RUSSIA

-

F3C

-

7710,0

7708,1

VFR

RESOLUTE, N.W.T., CANADA

2100 2330

J3C

5

7710,0

7708,1

VFF

IQALUIT, N.W.T., CANADA

0010 0900

J3C

5

7795,0

7793,1

JMH2

TOKYO, JAPAN

All Broadcast Times

F3C

5

7880,0

7878,1

DDK3

HAMBURG/PINNEBERG, GERMANY

All Broadcast Times

F3C

20

7908,8

7906,9

RBW 41

MURMANSK, RUSSIA

1900 0600

F3C

-

8040,0

8038,1

GYA

NORTHWOOD, UNITED KINGDOM

All Broadcast Times

F3C

10

8105,0

8103,1

SVJ4

ATHENS, GREECE

-

F3C

8

8121,9

8120,0

BAF36

BEIJING (PEKING), CHINA

-

F3C

6

8140,0

8138,1

BMF

TAIPEI, REPUBLIC OF CHINA

-

F3C

10

8146,6

8144,7

IMB55

ROME, ITALY

All Broadcast Times

F3C

5

8457,8

8455,9

VFA

INUVIK, CANADA

-

J3C

1

8459,0

8457,1

NOJ

KODIAK, ALASKA, USA

All Broadcast Times

F3C

4

8461,9

8460,0

3SD

BEIJING (PEKING), CHINA

-

F3C

10

8467,5

8465,6

JJC

KYODO NEWS, JAPAN/SINGAPORE

All Broadcast Times

F3C

10

8503,9

8502,0

NMG

NEW ORLEANS, LOUISIANA, USA

All Broadcast Times

F3C

4

8677,0

8675,1

CBV

VALPARAISO PLAYA ANCHA, CHILE

All Broadcast Times

F3C

1

8682,0

8680,1

NMC

PT. REYES, CALIFORNIA, USA

All Broadcast Times

F3C

4

9110,0

9108,1

NMF

BOSTON, MASSACHUSETTS, USA

All Broadcast Times

F3C

4

9165,0

9163,1

HLL4

SEOUL, REPUBLIC OF KOREA

All Broadcast Times

F3C

3

9459,0

9457,1

ZKLF

WELLINGTON, NEW ZEALAND

All Broadcast Times

F3C

5

9982,5

9980,6

KVM70

HONOLULU, HAWAII, USA

0519 1556

F3C

4

10116,9

10115,0

BAF4

BEIJING (PEKING), CHINA

-

F3C

10

10130,0

10128,1

RBW48

MURMANSK, RUSSIA

0600 1900

F3C

-

10536,0

10534,1

CFH

HALIFAX, NOVA SCOTIA, CANADA

All Broadcast Times

F3C

6

10555,0

10553,1

VMW

WILUNA, AUSTRALIA

All Broadcast Times

F3C

1

10980,0

10978,1

RCC76

MOSCOW, RUSSIA

-

F3C

-

11030,0

11028,1

VMC

CHARLEVILLE, AUSTRALIA

All Broadcast Times

F3C

1

11086,5

11084,6

GYA

NORTHWOOD, UNITED KINGDOM

0600 2000

F3C

10

11090,0

11088,1

KVM70

HONOLULU, HAWAII, USA

All Broadcast Times

F3C

4

11617,0

11615,1

RDD78

MOSCOW, RUSSIA

-

F3C

-

12390,0

12388,1

GYA

NORTHWOOD, U.K. (PERSIAN GULF)

All Broadcast Times

F3C

10

12412,5

12410,6

NOJ

KODIAK, ALASKA, USA

All Broadcast Times

F3C

4

12665,0

12663,1

PWZ-33

RIO DE JANEIRO, BRAZIL

All Broadcast Times

F3C

1

12745,5

12743,6

JJC

KYODO NEWS, JAPAN/SINGAPORE

All Broadcast Times

F3C

15

12750,0

12748,1

NMF

BOSTON, MASSACHUSETTS, USA

1400 2228

F3C

4

12786,0

12784,1

NMC

PT. REYES, CALIFORNIA, USA

All Broadcast Times

F3C

4

12789,9

12788,0

NMG

NEW ORLEANS, LOUISIANA, USA

All Broadcast Times

F3C

4

12831,9

12830,0

3SD

BEIJING (PEKING), CHINA

-

F3C

10

12961,0

12959,1

RCC76

MOSCOW, RUSSIA

-

F3C

-

13510,0

13508,1

CFH

HALIFAX, NOVA SCOTIA, CANADA

All Broadcast Times

F3C

6

13538,0

13536,1

ZSJ

CAPE NAVAL, SOUTH AFRICA

All Broadcast Times

F3C

10

13550,5

13548,6

ZKLF

WELLINGTON, NEW ZEALAND

All Broadcast Times

F3C

5

13570,0

13568,1

HLL5

SEOUL, REPUBLIC OF KOREA

All Broadcast Times

F3C

3

13597,4

13595,5

IMB56

ROME, ITALY

All Broadcast Times

F3C

5

13882,5

13880,6

DDK6

HAMBURG/PINNEBERG, GERMANY

All Broadcast Times

F3C

20

13900,0

13898,1

BMF

TAIPEI, REPUBLIC OF CHINA

-

F3C

10

13920,0

13918,1

VMC

CHARLEVILLE, AUSTRALIA

All Broadcast Times

F3C

1

13988,5

13986,6

JMH4

TOKYO, JAPAN

All Broadcast Times

F3C

5

14366,9

14365,0

BAF8

BEIJING (PEKING), CHINA

-

F3C

15

15615,0

15613,1

VMW

WILUNA, AUSTRALIA

All Broadcast Times

F3C

1

16025,9

16024,0

BAF9

BEIJING (PEKING), CHINA

-

F3C

-

16035,0

16033,1

9VF/252

KYODO NEWS, JAPAN/SINGAPORE

0740-1010, 1415-1815

F3C

10

16135,0

16133,1

KVM70

HONOLULU, HAWAII, USA

1719 0356

F3C

4

16340,1

16338,2

ZKLF

WELLINGTON, NEW ZEALAND

2145 0500

F3C

5

16903,9

16902,0

3SD

BEIJING (PEKING), CHINA

-

F3C

30

16971,0

16969,1

JJC

KYODO NEWS, JAPAN/SINGAPORE

All Broadcast Times

F3C

15

16978,0

16976,1

PWZ-33

RIO DE JANEIRO, BRAZIL

All Broadcast Times

F3C

1

17069,6

17067,7

JJC

KYODO NEWS, JAPAN/SINGAPORE

All Broadcast Times

F3C

15

17146,4

17144,5

CBV

VALPARAISO PLAYA ANCHA, CHILE

All Broadcast Times

F3C

1

17146,4

17144,5

NMG

NEW ORLEANS, LOUISIANA, USA

1200 2045

F3C

4

17151,2

17149,3

NMC

PT. REYES, CALIFORNIA, USA

All Broadcast Times

F3C

4

17430,0

17428,1

9VF/252

KYODO NEWS, JAPAN/SINGAPORE

0740-1010, 1415-1815

F3C

10

18060,0

18058,1

VMW

WILUNA, AUSTRALIA

2100 1100

F3C

1

18236,9

18235,0

BAF33

BEIJING (PEKING), CHINA

-

F3C

6

18238,0

18236,1

ZSJ

CAPE NAVAL, SOUTH AFRICA

0600-1600 (when available)

F3C

10

18261,0

18259,1

GYA

NORTHWOOD, U.K. (PERSIAN GULF)

0800-1800

F3C

10

18560,0

18558,1

BMF

TAIPEI, REPUBLIC OF CHINA

-

F3C

10

20469,0

20467,1

VMC

CHARLEVILLE, AUSTRALIA

1900 0900

F3C

1

22527,0

22525,1

NMC

PT. REYES, CALIFORNIA, USA

1840 2356

F3C

4

22542,0

22540,1

JJC

KYODO NEWS, JAPAN/SINGAPORE

All Broadcast Times

F3C

15
